TOE 8800
Arbitrary Power Supplies from 160 W to 5200
W
Description
Arbitrary power supplies for generation
of any voltage and current characteristics with an output power
from 160 W to 5200 W. With exceptionally versatile and
user-friendly software.
In addition to many predefined standard impulses for the
automotive and avionics industries, the arbitrary power supplies
of the TOE 8805 to TOE 88165 series additionally offer the
option for generating completely optional waveforms. You can
thus generate test voltages which perhaps may only be defined in
the future.
They also provide dips and drops, load dump impulses, and many
versions of complex voltages.
A comprehensive library of curves typical in vehicles provide
the user with a reliable and versatile test instrument.
A further operating mode of these extremely universal arbitrary
units is the simulation of wiring system ripple as encountered
in vehicles or aircraft. Ripples with frequencies from 20 Hz up
to more than 70 kHz can be superimposed on the test curves or on
a pure DC voltage.
All models starting with the TOE 8825 are of modular design and
consist of an intelligent control unit and boosters connected in
parallel.
In these extremely universal units, the major features of a
high-speed power supply have been optimally combined with those
of an arbitrary function generator.
Description
Arbitrary power supplies for generation
of any voltage and current characteristics with an output power
from 160 W to 5200 W. With exceptionally versatile and
user-friendly software.
In addition to many predefined standard impulses for the
automotive and avionics industries, the arbitrary power supplies
of the TOE 8805 to TOE 88165 series additionally offer the
option for generating completely optional waveforms. You can
thus generate test voltages which perhaps may only be defined in
the future.
They also provide dips and drops, load dump impulses, and many
versions of complex voltages.
A comprehensive library of curves typical in vehicles provide
the user with a reliable and versatile test instrument.
A further operating mode of these extremely universal arbitrary
units is the simulation of wiring system ripple as encountered
in vehicles or aircraft. Ripples with frequencies from 20 Hz up
to more than 70 kHz can be superimposed on the test curves or on
a pure DC voltage.
All models starting with the TOE 8825 are of modular design and
consist of an intelligent control unit and boosters connected in
parallel.
In these extremely universal units, the major features of a
high-speed power supply have been optimally combined with those
of an arbitrary function generator.
Software -
The software included in the scope of delivery is extremely versatile,
allows intuitive use, and permits generation of almost any waveforms
within a very short time. Direct data importing from digital
oscilloscopes and data recording equipment is also possible without
problem.
Furthermore, the software has a library with standard curves from global
vehicle manufacturers which is continuously updated.
Maximum output voltage -
16 V to 100 V
Maximum output current -
1.6 A to 320 A
Output power -
160 W to 5200 W
Special features
- Generates any voltage and current characteristics
- Imports real-time signals from digital storage oscilloscopes or data recording systems
- Very high rise and fall rates of the output voltage: approx. 2 V/μs
- Brief load currents up to 1000 A
- User-friendly software
- GPIB and analog interfaces included as standard
- Vehicle electrics ripple: AC superimposition 4 Vpp
- 20 Hz to 70 kHz (TOE 8815 to TOE 8865)
- 20 Hz bis 50 kHz (TOE 8865 to TOE 88165)
- Internal sink function Brief load sink: 1000 W to 16000 W, depends on model
- Brief load current: 3 x Irated for approx. 10 ms (max. 1000 A)

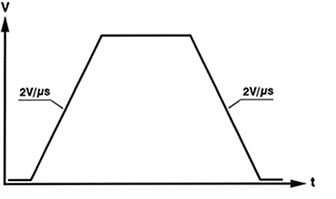

Rise and fall times with TOE 8805 to TOE 88165
