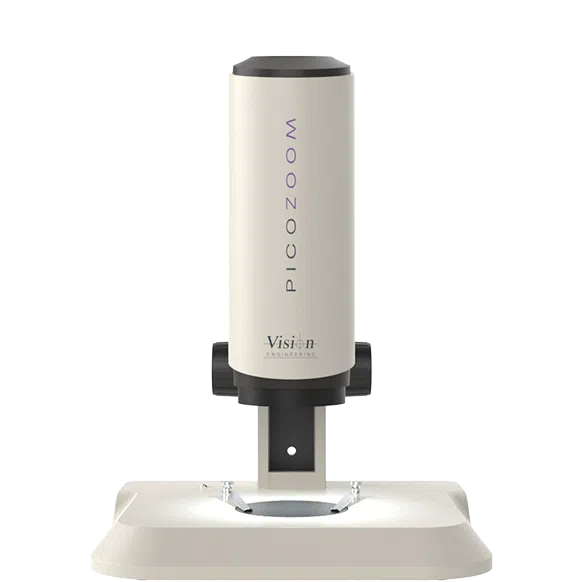

Vision Engineering PicoZoom

Autofocus Inspection Made Simple

PicoZoom is an autofocus digital inspection microscope designed for electronics, component inspection and quality control environments. Motorised zoom, focus stacking, measurement tools and custom report output combine in one compact inspection system for clear inspection, faster setup and simple documentation.

Key Features

• One-Click Autofocus: Quickly achieve a sharp image with one-click autofocus, reducing the time spent adjusting focus between parts, surfaces and magnification levels.
• Motorised Zoom & Extended Depth of Field: Inspect a wide range of feature sizes without changing lenses or manually adjusting optical zoom. Focus stacking combines images from different focal planes to provide a clearer view across parts with depth.
• Measurement & Custom Reporting: Built-in measurement, annotation and custom report output help capture inspection results and create clear QC documentation.

Consistent Inspection Setup

PicoZoom combines motorised zoom, autofocus and adjustable lighting to reduce manual adjustments between parts, surfaces and magnification levels. This helps make routine inspection quicker and more consistent.

Quadrant-Controlled Lighting

For reflective or low-contrast surfaces, quadrant-controlled lighting allows the direction and brightness of illumination to be adjusted, helping make surface details, edges, marks and defects easier to inspect.

Inspection Records

PicoZoom can combine images, annotations, measurements and results into custom reports, helping provide clearer and more consistent QC documentation.

Typical Applications

• PCB & solder joint inspection
• Medical device inspection
• Incoming goods inspection
• Defect analysis
